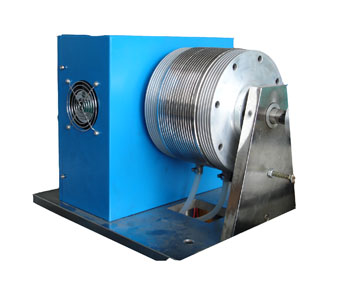

CF Magnetic Powder Dynamometers

Features:

.No residual torque,low inertia,and high sensitive load.

.Torque value per unit volume is 2~3 times as CC dynamometer.

.Suitable for the test of low speed& large torque motor, gear motor, window-lift motor, wiper motor, bicycle motor, etc.

.Accuracy: ±0.5%(Full scale) ±1digit (if need the high accuracy,please contact us)

Model	Max Torque	Max Speed	Rated Power(Max)
	(N·m)	(r/min)	5 minutes (W)	Continuous (W)
CF50K	5	5000	250	100
CF50KS/F	5	5000	800	400
CF100K	10	5000	400	200
CF100KS/F	10	5000	1500	800
CF200K	20	4000	800	400
CF200KS/F	20	4000	3000	1500
CF500K	50	4000	1200	600
CF500KS/F	50	4000	4000	2000
CF1KK	100	3000	1200	800
CF1KKS	100	3000	6000	3000
CF2KK	200	1500	1500	1000
CF2KKS	200	1500	8000	5000
CF50KKS	5000	500	55K	45K

Note:
·The special cooling system can be added on the dynamometer to increase the running power according the customer’s requirements.
·The customized specification of dynamometers can be made according the customer’s requirements.
·Mark “S” means cold water cooling,the cold water cooling circulation system is needed. Mark “F” means fan or blower cooling, the fan/blower cooling system is needed
